Brusso Box Hinge - Pair

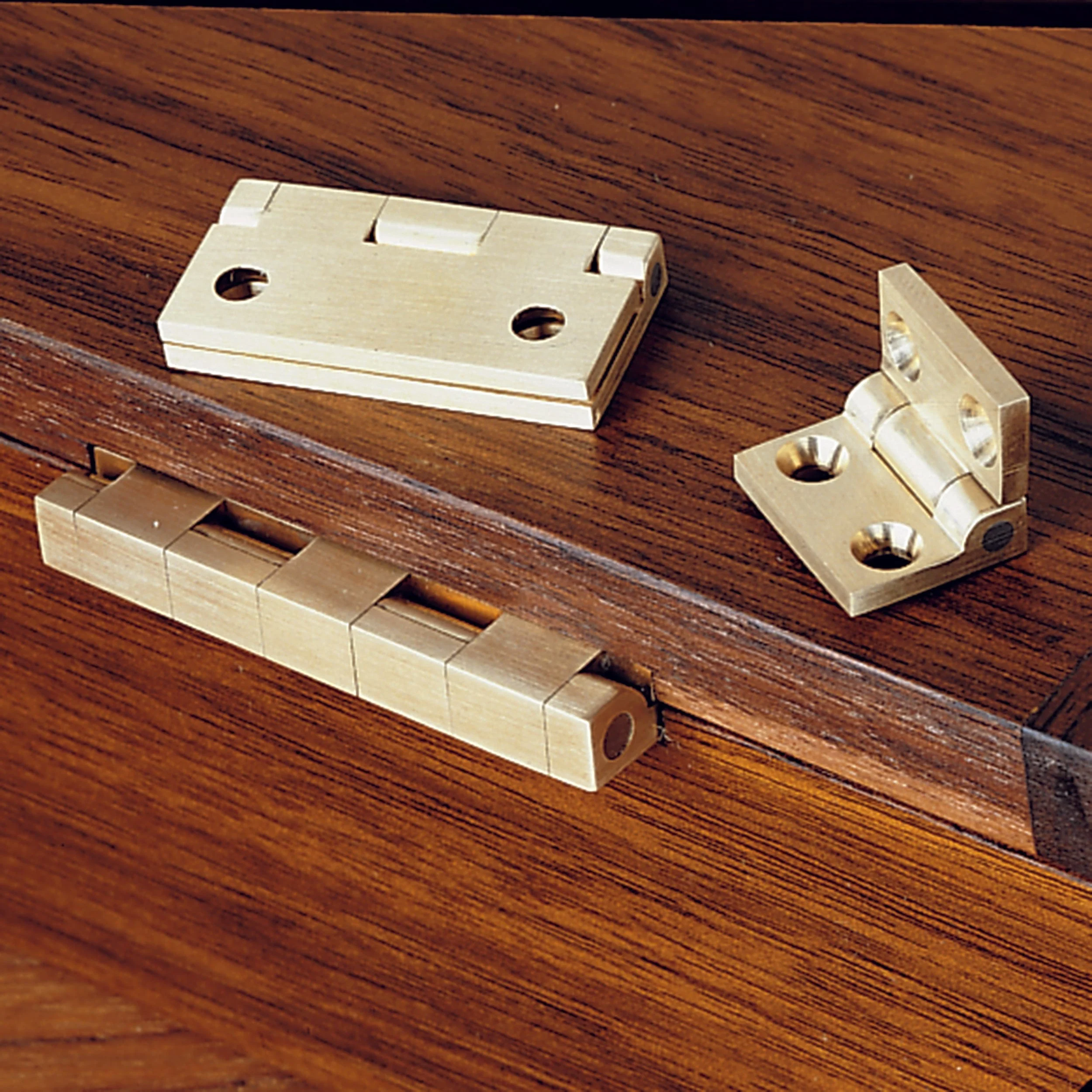

Brusso® Precision Small Box Hinges feature rectangular knuckles which stop the lid in a vertical position so it won't drop back. Hinge pins are precision ground tool steel, with pin boxes that are first drilled, then reamed, for smooth fit and operation. Use in boxes of all types and small doors where the opening angle won’t exceed 100 degrees.
Features:- Hinge’s knuckles stop lid in vertical position from dropping back
- Solid brass
- Length: 1-1/4"
- Width: 5/8"
- Minimum Stock Thickness: 7/16"
- Leaf Thickness: 3/32"
- (2) Large Brass Box Hinges
- (1) Set of Installation/Assembly Screws
- Pre-drilling is recommended: For #4 screws use a 5/64" straight pilot drill for hardwoods and a 1/16" for soft woods. Use a 7/64" for hardwoods and 3/32" for softwoods if you are using a tapered pilot drill.
Select Size
From $13.80
Original: $45.99
-70%Brusso Box Hinge - Pair—
$45.99
$13.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Brusso® Precision Small Box Hinges feature rectangular knuckles which stop the lid in a vertical position so it won't drop back. Hinge pins are precision ground tool steel, with pin boxes that are first drilled, then reamed, for smooth fit and operation. Use in boxes of all types and small doors where the opening angle won’t exceed 100 degrees.
Features:- Hinge’s knuckles stop lid in vertical position from dropping back
- Solid brass
- Length: 1-1/4"
- Width: 5/8"
- Minimum Stock Thickness: 7/16"
- Leaf Thickness: 3/32"
- (2) Large Brass Box Hinges
- (1) Set of Installation/Assembly Screws
- Pre-drilling is recommended: For #4 screws use a 5/64" straight pilot drill for hardwoods and a 1/16" for soft woods. Use a 7/64" for hardwoods and 3/32" for softwoods if you are using a tapered pilot drill.
