Double Square - Imperial

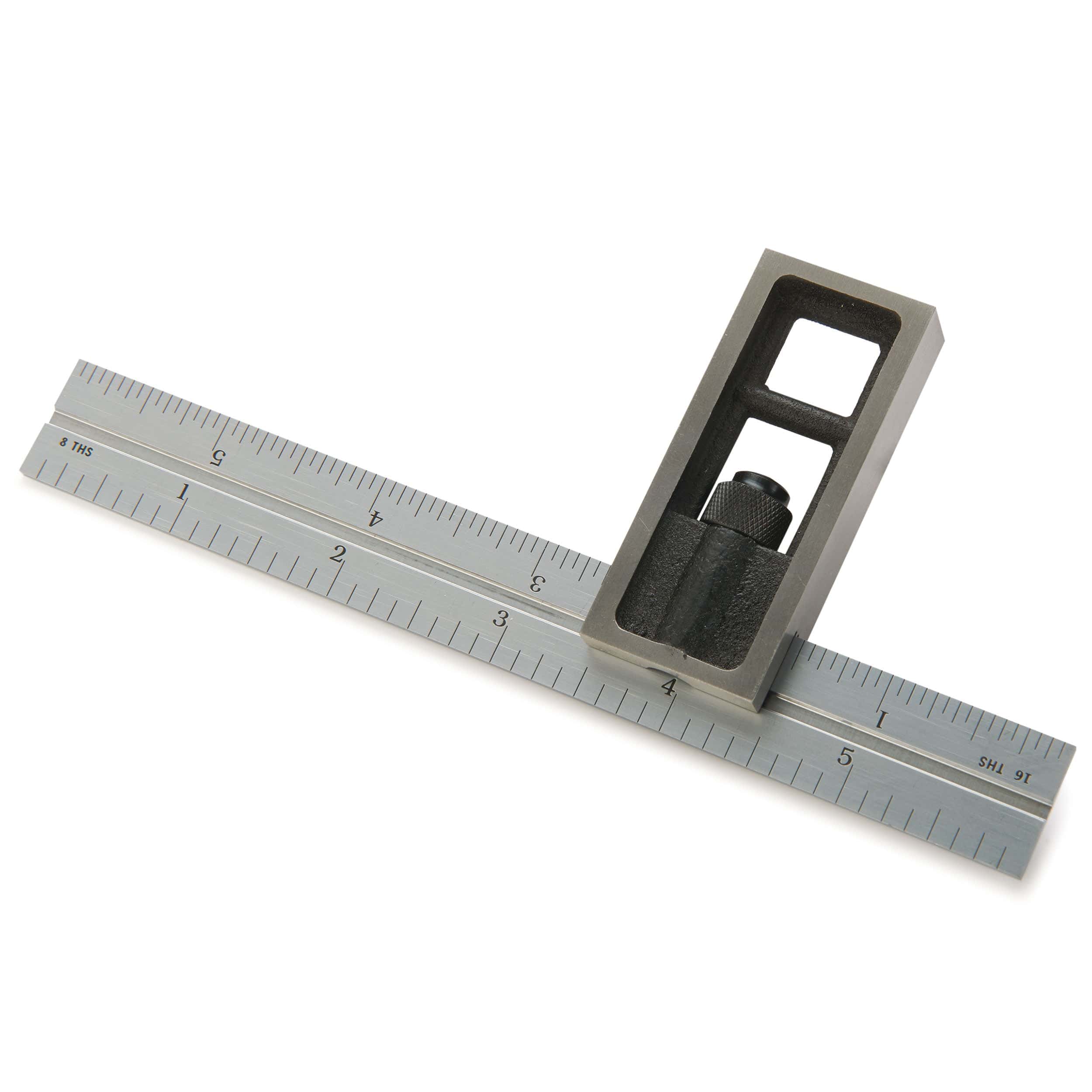

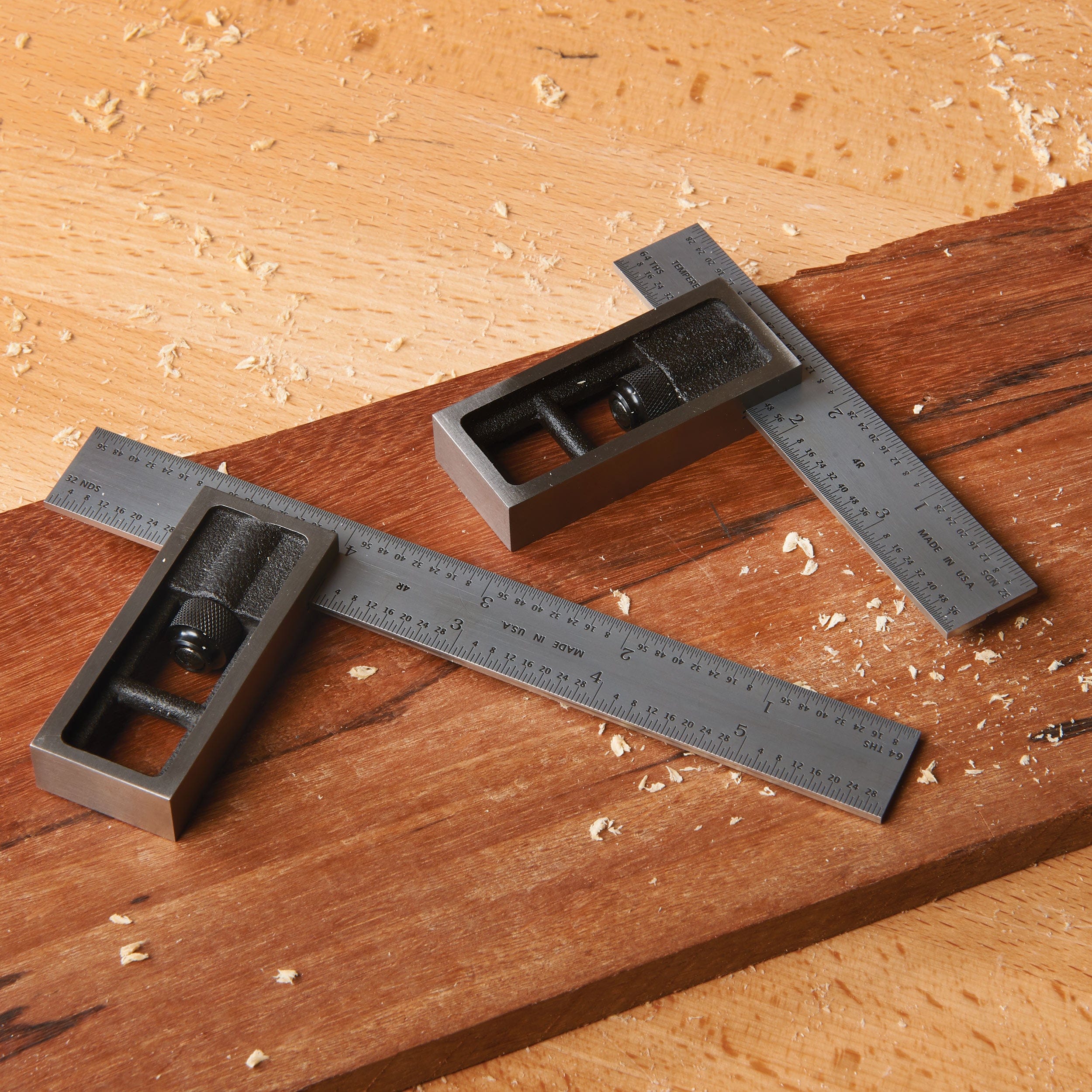

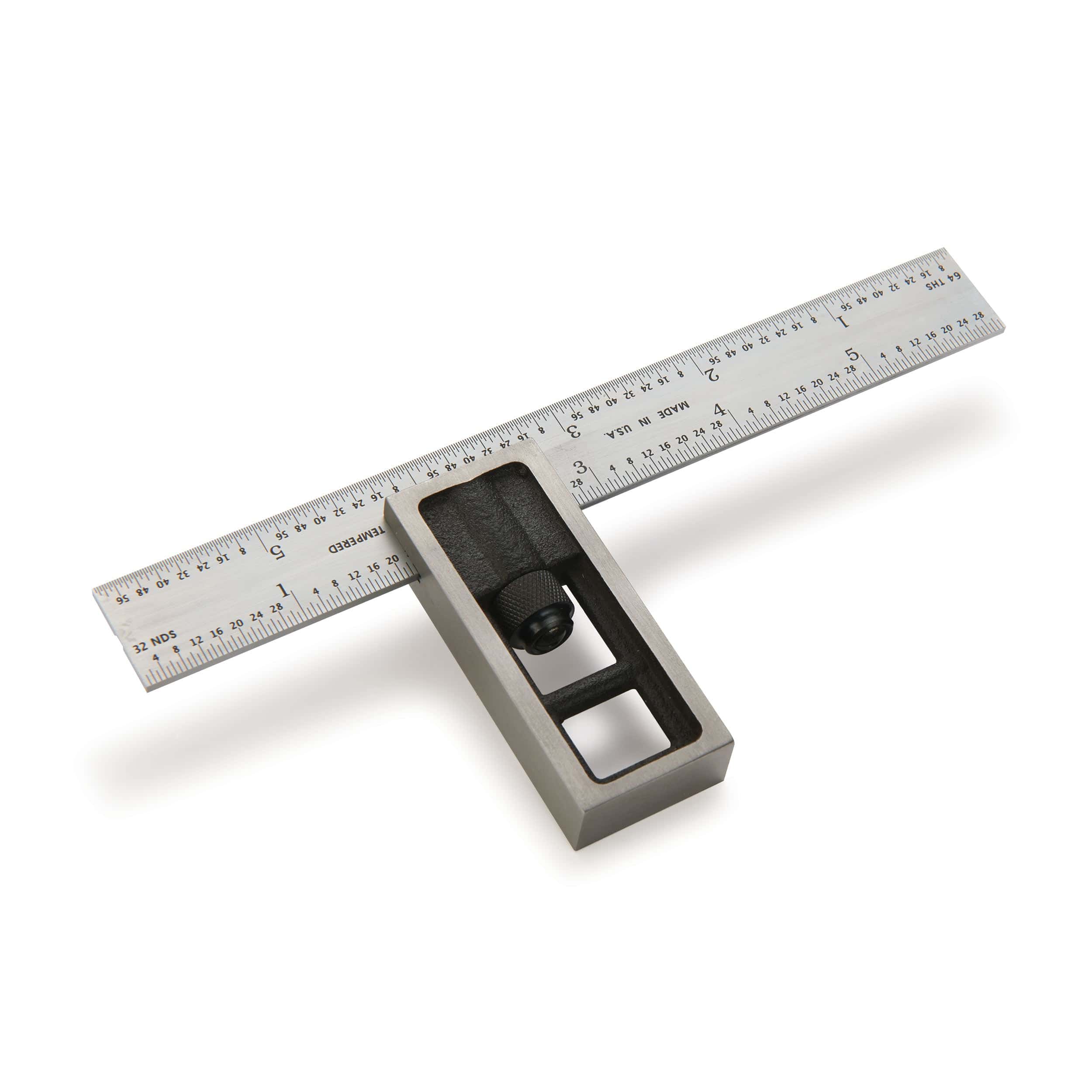

Pinnacle® 4-Inch Double Square offers the accuracy of engineer's squares with the adjustability common to larger combination squares. Use this tool for machine and jig set-up or laying out joints. The fully hardened and satin finished blade features easy to read, etched and black filled, micro-fine graduations. The cast iron head is precision ground to federal specification.
Features:

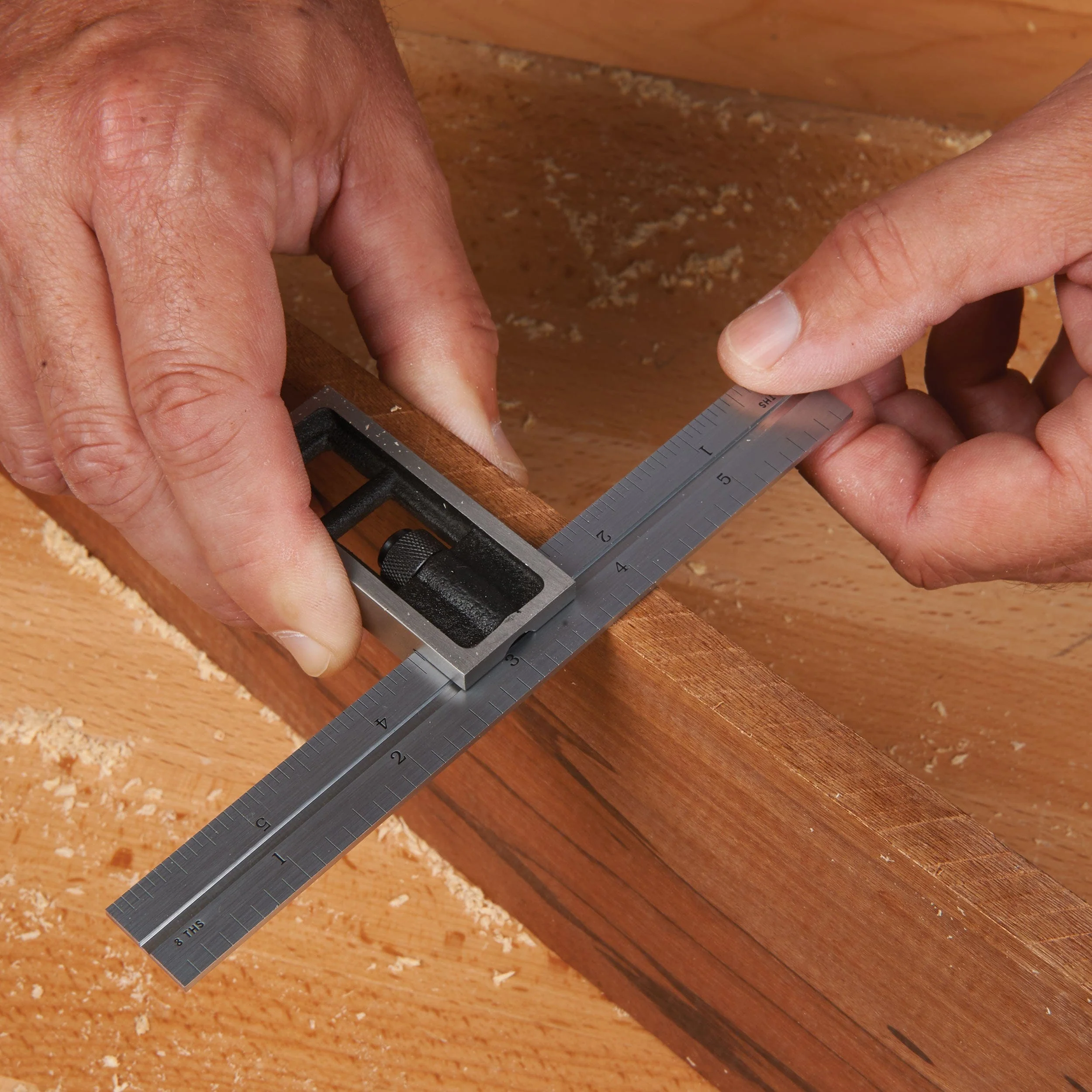

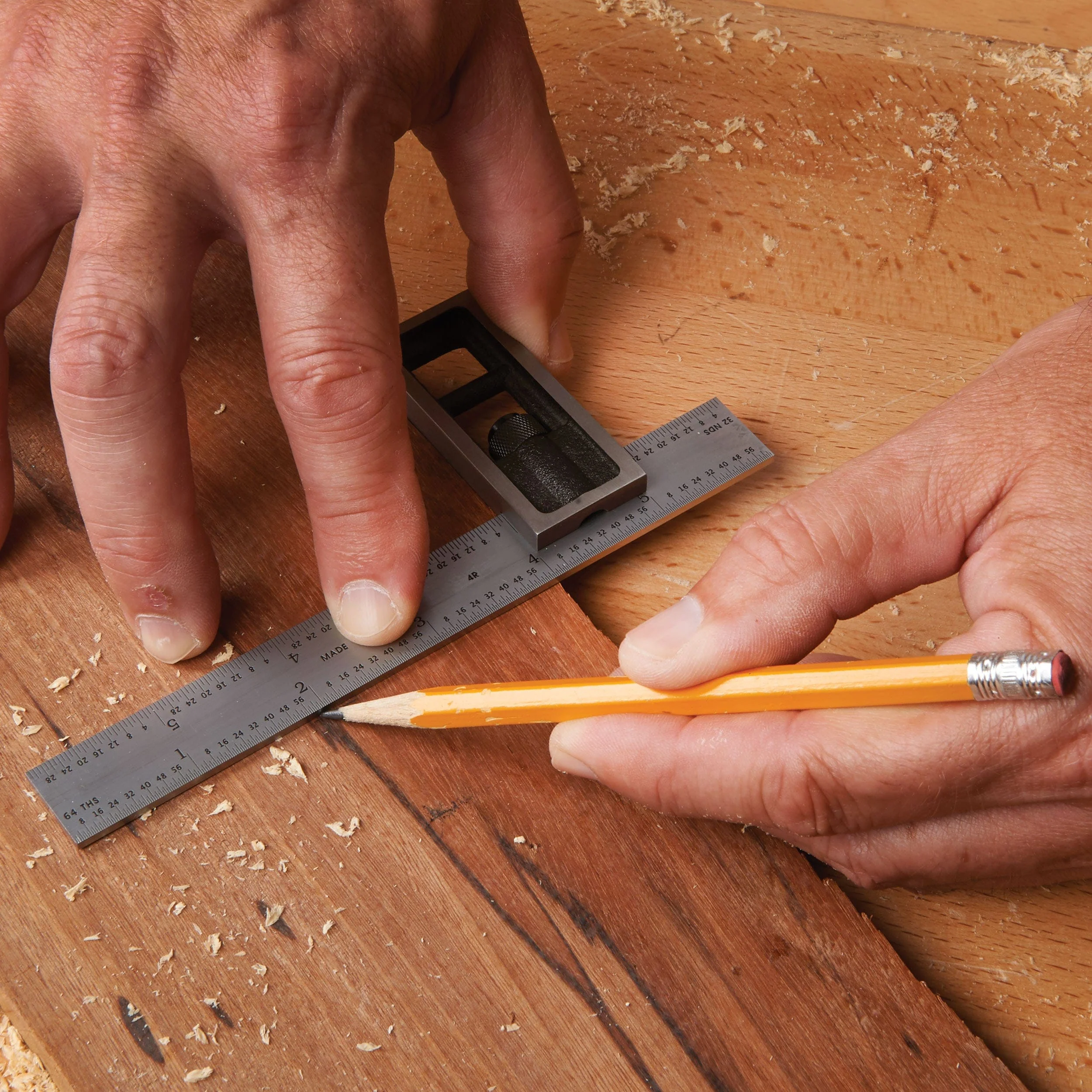

- For machine and jig set-up or laying out joints

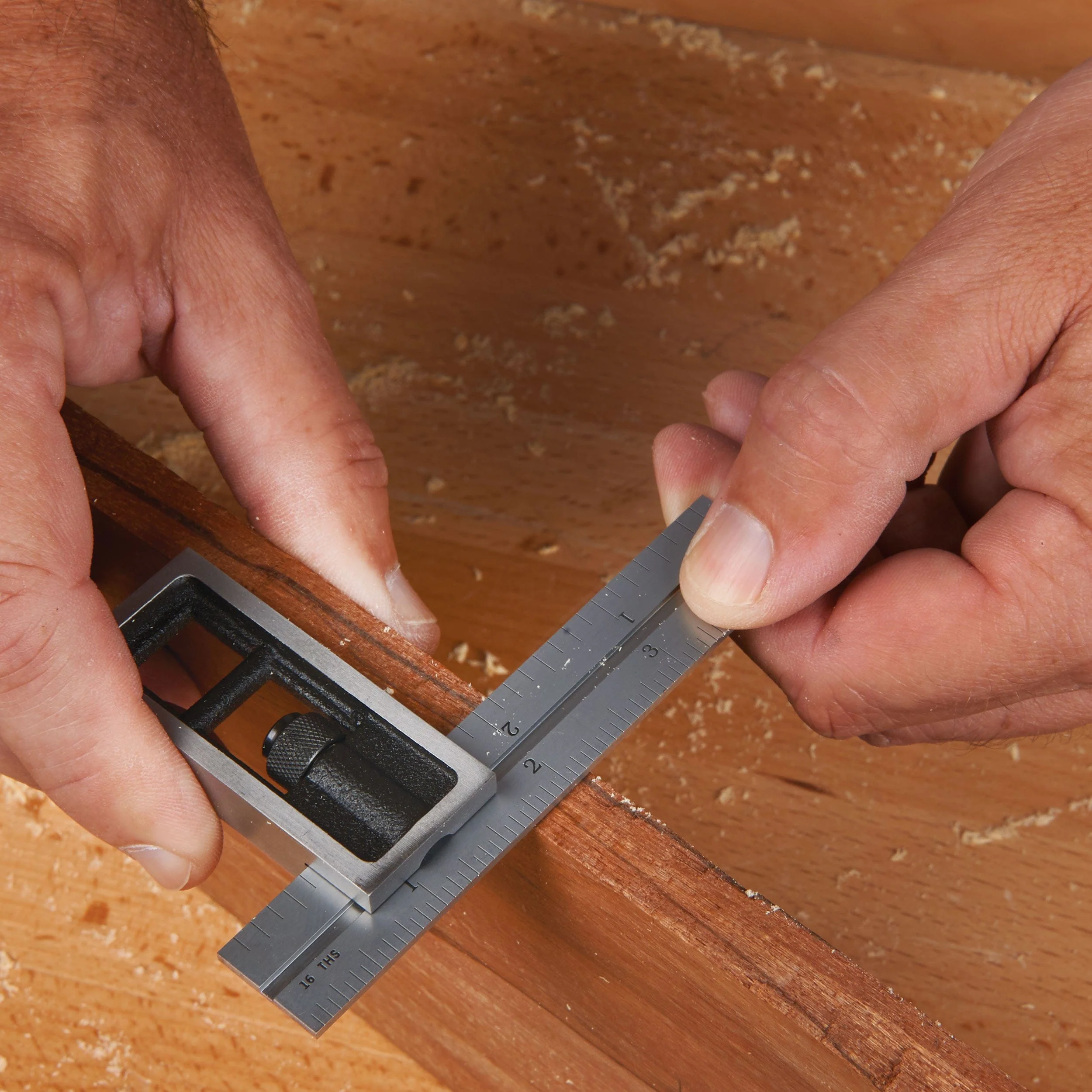

- Use to check or set 90° angles
- Widely used by machinists, toolmakers, and patternmakers
- Fully hardened steel blade with satin finish
- Precision ground cast iron head
- Micro-fine graduations in 8ths, 16ths, and 64ths on inch increments
Specifications:
- Blade Length: 4"
- Head Material: Cast iron
- Blade Material: Hardened steel
- Blade Finish: Satin
- Unit of Measurement: Imperial
- Graduations: 4R - 1/8", 1/16" and 1/64"
What's Included:
- (1) Pinnacle Double Square - Imperial - 4"
Select Size
From $18.00
Original: $59.99
-70%Double Square - Imperial—
$59.99
$18.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pinnacle® 4-Inch Double Square offers the accuracy of engineer's squares with the adjustability common to larger combination squares. Use this tool for machine and jig set-up or laying out joints. The fully hardened and satin finished blade features easy to read, etched and black filled, micro-fine graduations. The cast iron head is precision ground to federal specification.
Features:
- For machine and jig set-up or laying out joints
- Use to check or set 90° angles
- Widely used by machinists, toolmakers, and patternmakers
- Fully hardened steel blade with satin finish
- Precision ground cast iron head
- Micro-fine graduations in 8ths, 16ths, and 64ths on inch increments
Specifications:
- Blade Length: 4"
- Head Material: Cast iron
- Blade Material: Hardened steel
- Blade Finish: Satin
- Unit of Measurement: Imperial
- Graduations: 4R - 1/8", 1/16" and 1/64"
What's Included:
- (1) Pinnacle Double Square - Imperial - 4"
