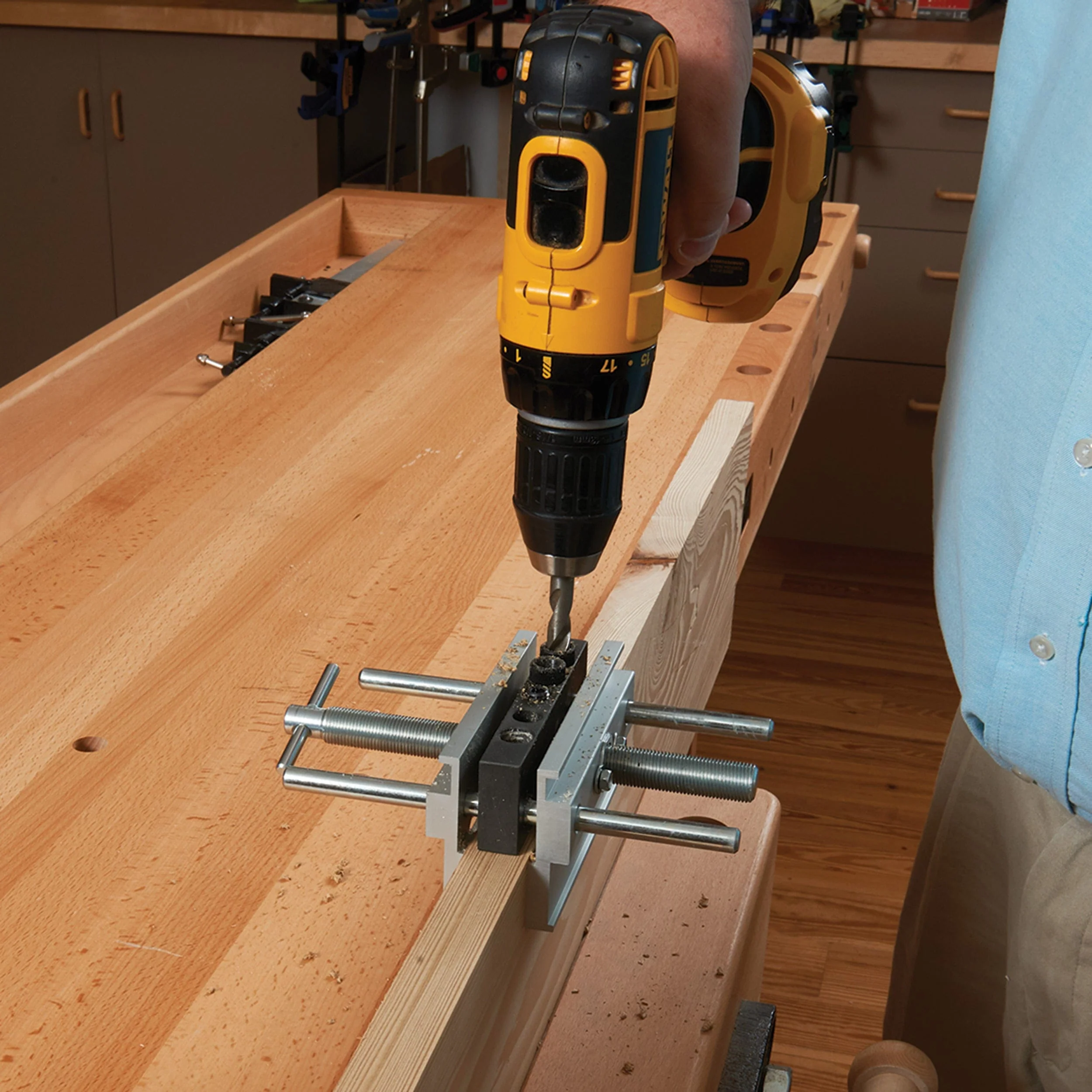

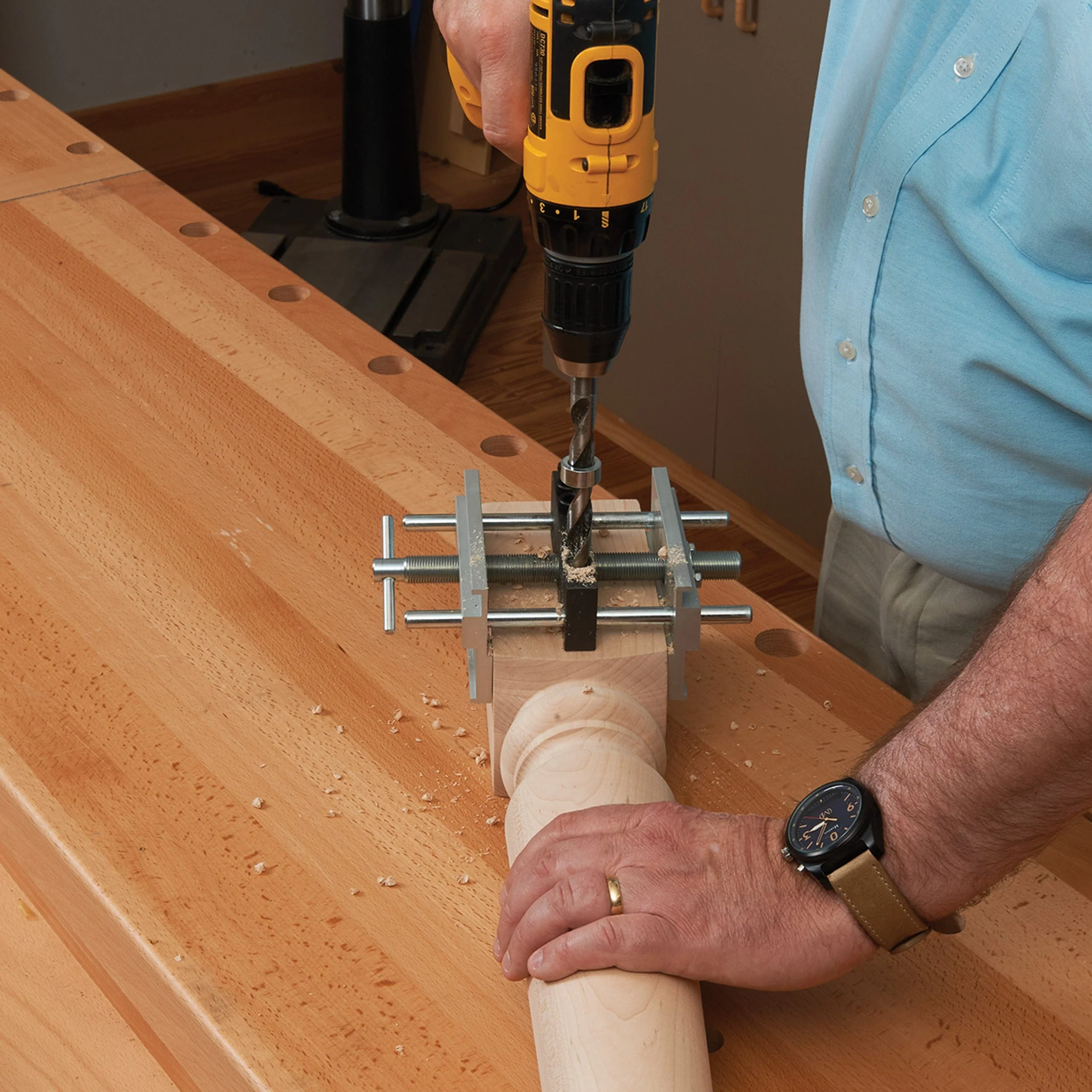

Automatic self-centering action of this WoodRiver® Wide Capacity Deluxe Doweling Jig assures accurate center drilling every time. Steel clamping screw has fine threads to increase clamping force across even narrow material. Aluminum frame holds work securely without damage to the workpiece. Drill guide block is hardened, precision drilled and marked for hole centers. Extra capacity up to 6" wide is perfect for face work on 2 x 4 and 2 x 6 stock. Even opens to center drill large table legs and bedposts. Deluxe doweling jig features two permanent drill hole sizes: 7/16" and 1/2" and two threaded drill holes that accept any of the six removable screw-in bushings. Removable bushing sizes are two each of 1/4", 5/16" and 3/8".

Features:

• Self-centering hardened drill guide block with steel clamping screw
• Hole center marked on jig to align directly with location mark on the workpiece
• 6" wide capacity with aluminum frame holds work securely
• Two permanent drill hole sizes 7/16" and 1/2" and two threaded drill holes
• Removable bushing sizes are two each of 1/4", 5/16" and 3/8"

Specifications:

• Capacity (Width): 6"

What's Included:

• (1) WoodRiver Wide Capacity Deluxe Doweling Jig
• (2) 1/4" removable bushings
• (2) 5/16" removable bushings
• (2) 3/8" removable bushings
